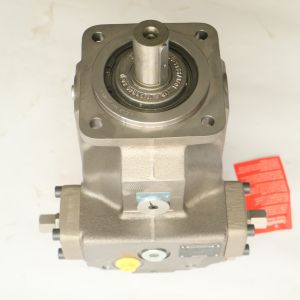

A4VSO71DFR/30R-VPB13N00 A4VSO71DR/30R-VZB13N00 German Rexroth Hydraulic Pump Variable Axial Piston Pump Motor

Quanzhou Yisenneng Hydraulic Electromechanical Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap A4VSO71DFR/30R-VPB13N00 A4VSO71DR/30R-VZB13N00 German Rexroth Hydraulic Pump Variable Axial Piston Pump Motor from wholesalers

    Buy cheap A4VSO71DFR/30R-VPB13N00 A4VSO71DR/30R-VZB13N00 German Rexroth Hydraulic Pump Variable Axial Piston Pump Motor from wholesalers
    • Buy cheap A4VSO71DFR/30R-VPB13N00 A4VSO71DR/30R-VZB13N00 German Rexroth Hydraulic Pump Variable Axial Piston Pump Motor from wholesalers

    A4VSO71DFR/30R-VPB13N00 A4VSO71DR/30R-VZB13N00 German Rexroth Hydraulic Pump Variable Axial Piston Pump Motor

    Ask Lasest Price
    Brand Name : Rexroth
    Model Number : A4VSO71DFR/30R-VPB13N00 A4VSO71DR/30R-VZB13N00
    Certification : ISO
    Price : 1
    Payment Terms : MoneyGram,Western Union,T/T,D/A,D/P,L/C
    Supply Ability : 100
    Delivery Time : 2-6 weeks
    • Product Details
    • Company Profile

    A4VSO71DFR/30R-VPB13N00 A4VSO71DR/30R-VZB13N00 German Rexroth Hydraulic Pump Variable Axial Piston Pump Motor

    A4VSO71DFR/30R-VPB13N00 A4VSO71DR/30R-VZB13N00 German Rexroth hydraulic pump variable axial piston pump motor

    Parameter Category Optional Options Model Example Reference Source
    Control methods include DR (constant pressure control), DRG (remote constant pressure control), LR (constant power control), DFR (pressure/flow control), EO2 (electric proportional control), etc. A4VSO71 DR/10R-PPB25N00
    Series 10, 11, 30 A4VSO71 DR/10R-PPB25N00
    Rotation direction R (clockwise), L (counterclockwise) A4VSO71 DR/10R-PPB25N00
    Seal type P (NBR nitrile rubber+FKM shaft seal), V (fluororubber FKM) A4VSO71 DR/10R-PPB25N00
    Shaft end form P (DIN metric flat key), Z (DIN spline) A4VSO71 DR/10R-PPB25N00
    Install flanges B (ISO 4-hole), A (ISO 2-hole), C (SAE 2-hole), D (SAE 4-hole) A4VSO71 DR/10R-PPB25N00
    Oil port connection 25 (B/S oil port side 90 °), 13 (B/S oil port offset 90 °), etc. A4VSO71 DR/10R-PPB25N00
    Axis extension configuration N00 (no through axis drive), K (with through axis drive, can be connected to auxiliary pump) A4VSO71 DR/10R-PPB25N00



    1. Control method:
    DR: Suitable for constant pressure systems (such as accumulator circuits).
    LR: Constant power control, suitable for dynamic load scenarios (such as construction machinery).
    EO2: Electric proportional control, supporting precision flow regulation (such as machine tool hydraulic systems).
    2. Differences in serial numbers:
    Series 10: Basic industrial applications, high cost-effectiveness.
    30 series: Enhanced design, longer lifespan, supports high-frequency response.
    3. Special configuration:
    ◦ Through axis drive (suffix K): allows for the series connection of auxiliary pumps (such as gear pumps or plunger pumps) to expand the functionality of multi circuit systems.
    ◦ HFC oil compatibility: Some models (such as those with FKM seals) support water ethylene glycol media and need to be labeled with the FHFD suffix.
    4. Application scenarios:
    Widely used in high-pressure open circuit systems such as ceramic presses, metallurgical equipment, and marine machinery, it needs to be matched with NAS level 9 oil cleanliness.

    A4VSO71DFR/30R-VPB13N00 A4VSO71DR/30R-VZB13N00 German Rexroth Hydraulic Pump Variable Axial Piston Pump Motor

    Working ports 13 and 25, flat key splines P and Z, seals P and V, control mode: DFR
    A4VSO71DFR/30R-PPB13N00 A4VSO71DFR/30R-PPB25N00
    A4VSO71DFR/30R-PZB13N00 A4VSO71DFR/30R-PZB25N00
    A4VSO71DFR/30R-VPB13N00 A4VSO71DFR/30R-VPB25N00
    A4VSO71DFR/30R-VZB13N00 A4VSO71DFR/30R-VZB25N00
    Working ports 13 and 25, flat key splines P and Z, seals P and V, control mode: DRG
    A4VSO71DRG/30R-PPB13N00 A4VSO71DRG/30R-PPB25N00
    A4VSO71DRG/30R-PZB13N00 A4VSO71DRG/30R-PZB25N00
    A4VSO71DRG/30R-VPB13N00 A4VSO71DRG/30R-VPB25N00
    A4VSO71DRG/30R-VZB13N00 A4VSO71DRG/30R-VZB25N00
    Working ports 13 and 25, flat key splines P and Z, seals P and V, control mode: LR2
    A4VSO71LR2/30R-PPB13N00 A4VSO71LR2/30R-PPB25N00
    A4VSO71LR2/30R-PZB13N00 A4VSO71LR2/30R-PZB25N00
    A4VSO71LR2/30R-VPB13N00 A4VSO71LR2/30R-VPB25N00
    A4VSO71LR2/30R-VZB13N00 A4VSO71LR2/30R-VZB25N00
    Working ports 13 and 25, flat key splines P and Z, seals P and V, control mode: EO1
    A4VSO71EO1/30R-PPB13N00 A4VSO71EO1/30R-PPB25N00
    A4VSO71EO1/30R-PZB13N00 A4VSO71EO1/30R-PZB25N00
    A4VSO71EO1/30R-VPB13N00 A4VSO71EO1/30R-VPB25N00
    A4VSO71EO1/30R-VZB13N00 A4VSO71EO1/30R-VZB25N00

    FAQ;

    Payment term:

    1. T/T: 30% deposit by T/T, 70% balance by T/T before shipment

    2. L/C at sight

    Trade term: EXW or FOB Ningbo/Shanghai

    Packing details:

    Eternal Brand, Neutral or Customer's requires packing

    Neutral carton or same as the Customer's requires, export standard carton

    All cartons should be packed into the pallets more carefully.

    All of the productions are inspected carefully one by one by QC before delivery.

    Delivery time:

    We have huge quantity of inventory for complete pumps, motor and some pare pats,
    so the leading time is within 3days if have in stock.
    If haven't, within 5days if the quantity is less than 50pcs.
    It depends on the quantity ordered.

    Min. Order:
    If the model is in common or the production are in our stock warehouse,
    No MOQ for stocking production.Larger quantity, price will be more favorable.

    Deliever Way:

    By courier, like the DHL, UPS, Fedex,etc. It's door to door or barn to the door,
    usually 5-7 days to arrive.

    By air to air port, usually 3-5 days to arrive

    By sea to sea port, usually 20-30 days to arrive.
