| Brand Name : | Rexroth |
| Model Number : | A10VSO28DFLR/31R-PKC62K03 A10VSO28DFLR/31R-PKC62K03 A10VSO28DFLR/31R-PKC62N00 A10VSO28DFLR/31R-PKC62N00 A10VSO28DFLR/31R-PKC62N00 |
| Certification : | ISO |
| Price : | 2 |
| Payment Terms : | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Supply Ability : | 100 |
| Delivery Time : | 2 weeks |
A10VSO28DFLR/31R-PKC62K03 A10VSO28DFLR/31R-PKC62K03
A10VSO28DFLR/31R-PKC62N00
A10VSO28DFLR/31R-PKC62N00 A10VSO28DFLR/31R-PKC62N00 Rexroth
hydraulic pump mining German high-pressure plunger pump

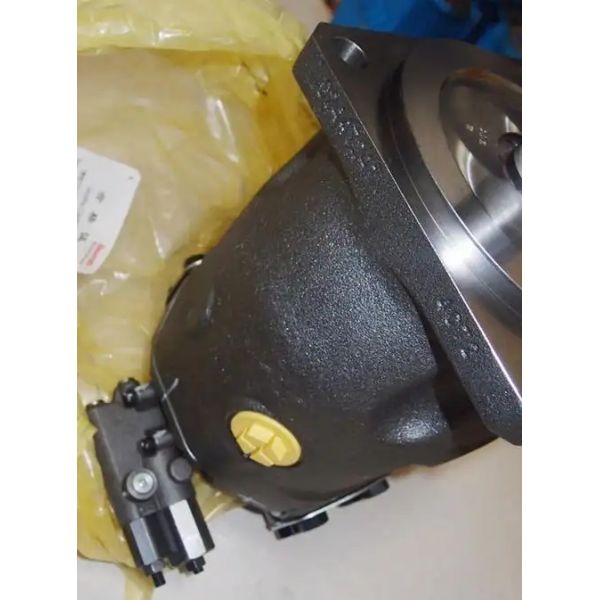

| Rexroth A10VSO hydraulic pump |
| 1. What are the possible causes and solutions for insufficient or no oil output from the hydraulic pump? |
| • Reason: |
| Excessive resistance in the oil suction pipeline (such as clogged oil filter, low oil tank level, or air leakage in the inlet pipe). |
| Internal leakage of the pump (scratches on the oil distribution plate, poor sealing, sand holes, etc.). |
| The inclination angle of the inclined plate is too small and the displacement is insufficient. |
| Motor reversal (requires adjustment of phase sequence). |
| • Solution: |
| Clean the oil filter, add oil to the normal liquid level, and check the sealing of the pipeline. |
| Replace worn parts (such as plungers, oil distribution plates) or grind mating surfaces. |
| Adjust the variable piston to increase the inclination angle of the inclined plate. |
| 2. How to adjust if there is still traffic output at the median level? |
| Reason: Deviation, looseness, or wear of the control mechanism (such as wear of the inclined plate ear shaft). |
| Solution: Reset the controller, tighten or replace damaged parts, and check the angle holding force. |
| How to troubleshoot the high vibration and noise during pump operation? |
| • Mechanical reasons: |
| The pump and motor shaft are not concentric, the coupling is damaged, or the bolts are loose. |
| Wear of bearings or variable head bearings (dry friction or impurities in the oil during start-up). |
| • Hydraulic reasons: |
| The oil inlet pipe is too thin, the oil filter is clogged, or the oil viscosity is too high. |
| • Solution: |
| Reinstall and replace worn parts. |
| Select appropriate oil to ensure smooth fuel tank design and piping. |
| What are the causes and solutions for overheating of the pump body? |
| • Reason: |
| Mechanical friction (such as improper clearance between moving parts) or liquid friction (high-pressure oil leakage converted into thermal energy). |
| Filter blockage leads to excessive back pressure in the return oil. |
| • Solution: |
| Adjust the gap and increase the capacity of the cooler or fuel tank. |
| Clean or replace the filter. |
| How to solve the problem of oil leakage? |
| • Common oil leakage points: |
| Damaged spindle oil seal, internal leakage (high oil seal pressure), loose external pipeline or aging sealing gasket. |
| • Solution: |
| Replace the oil seal or defective shaft, check the size of the oil drain pipe, and tighten the joint. |
| What are the key points of daily maintenance? |
| • Oil management: |
| Maintain oil temperature at 25-60 ℃, cleanliness level ≥ 8, and regularly test oil quality. |
| • Regular inspection: |
| Conduct a comprehensive inspection of seals, filters, and mechanical components every 6 months. |
| After running for 3000 hours, it is necessary to check the status of the oil replenishment pump daily. |
| Before starting: Ensure that the pump is filled with oil to avoid dry friction. |
| How to adjust abnormal pressure (too high/too low)? |
| • Low pressure: Check for pipeline leaks, overflow valve faults, or cylinder block distribution plate leaks. |
| Excessive pressure: Adjust the overflow valve, check the directional valve or return oil pipeline. |
| ------ |
| precautions |
| Installation requirements: The concentricity between the pump shaft and the motor shaft should be less than 0.05mm, and the suction height should not exceed 500mm. |
| • Spare parts replacement: It is recommended to use original seals and wear-resistant components to ensure compatibility. |
| R910939026 A A10VSO 28 DFLR/31R-PPA12N00 |
| R910936062 A A10VSO 28 DFLR/31R-PPA12N00 |
| R910906755 A A10VSO 28 DFR /31L-PPA12N00 |
| R910904363 A A10VSO 28 DFR /31R-PPA12K01 |
| R902417564 A A10VSO 28 DFR /31R-PPA12KB3 |
| R910903160 A A10VSO 28 DFR /31R-PPA12N00 |
| R910979557 A A10VSO 28 DFR /31R-PSA12N00 |
| R910910660 A A10VSO 28 DFR /31R-VPA12N00 |
| R910926318 A A10VSO 28 DFR1/31R-PPA12K01 |
| R910929004 A A10VSO 28 DFR1/31R-PPA12K02 |
| R910910590 A A10VSO 28 DFR1/31R-PPA12N00 |
| R910946322 A A10VSO 28 DFR1/31R-PPA12N00 -SO410 |
| R910974869 A A10VSO 28 DFR1/31R-PSA12N00 |
| R902501926 A A10VSO 28 DG /31R-VPA12N00 |
| R910907919 A A10VSO 28 DR /31R-PPA12K01 |
| R910909760 A A10VSO 28 DR /31R-PPA12K02 |
| R910907369 A A10VSO 28 DR /31R-VPA12N00 |
| R910986352 A A10VSO 28 DRG /31L-PPA12N00 |
| R910939601 A A10VSO 28 DRG /31R-PPA12N00 |
| R910986796 A A10VSO 28 DRG /31R-PSA12N00 |
| R902421254 A A10VSO 28 DRG /31R-VPA12K01 |
| R910925052 A A10VSO 28 FHD /31R-PPA12K01 |
| R910937599 A A10VSO 45 DFLR/31R-PPA12K01 |
| R910940582 A A10VSO 45 DFLR/31R-PPA12N00 |
| R910936910 A A10VSO 45 DFLR/31R-PPA12N00 |
| R910935975 A A10VSO 45 DFLR/31R-PPA12N00 |
| R910969633 A A10VSO 45 DFR /31L-PPA12K02 |
| R910939119 A A10VSO 45 DFR /31L-PPA12N00 |
| R910909613 A A10VSO 45 DFR /31R-PPA12K01 |
| R910909281 A A10VSO 45 DFR /31R-PPA12K02 |
| R910908268 A A10VSO 45 DFR /31R-PPA12K25 |
| R902432094 A A10VSO 45 DFR /31R-PPA12KB2 |
| R910939183 A A10VSO 45 DFR /31R-PPA12N00 |
| R910920174 A A10VSO 45 DFR /31R-VPA12N00 |
| R902480875 A A10VSO 45 DFR /31R-VSA12KB4 |
| R910988591 A A10VSO 45 DFR1/31L-PPA12N00 -SO 32 |
| R910908416 A A10VSO 45 DFR1/31R-PPA12K01 |
| R910927068 A A10VSO 45 DFR1/31R-PPA12K02 |
| R910997719 A A10VSO 45 DFR1/31R-PPA12K04 |
| R910937937 A A10VSO 45 DFR1/31R-PPA12K51 |
| R910974772 A A10VSO 45 DFR1/31R-PPA12KB3 |
| R910970379 A A10VSO 45 DFR1/31R-PPA12KB4 |
| R910908725 A A10VSO 45 DFR1/31R-PPA12N00 |
| R910978723 A A10VSO 45 DFR1/31R-PSA12N00 |
| R910949909 A A10VSO 45 DFR1/31R-VPA12K02 |
| R910965714 A A10VSO 45 DG /31R-VPA12N00 |
| R910942498 A A10VSO 45 DR /31L-VPA12N00 |
| R910908273 A A10VSO 45 DR /31R-PPA12K01 |
| R910969378 A A10VSO 45 DR /31R-PSA12N00 |
| R910916629 A A10VSO 45 DR /31R-VPA12N00 |
| R910940863 A A10VSO 45 DRG /31R-PPA12N00 |
| R902456127 A A10VSO 45 DRG /31R-VPA12K68 |
| R910948800 A A10VSO 71 DFLR/31R-PPA12K00 -SO290 |
| R910947239 A A10VSO 71 DFLR/31R-PPA12K01 |
| R910944067 A A10VSO 71 DFLR/31R-PPA12N00 |
| R910946787 A A10VSO 71 DFR /31L-PPA12N00 |
| R910960472 A A10VSO 71 DFR /31R-PPA12K01 |
| R910963914 A A10VSO 71 DFR /31R-PPA12K02 |
| R902416246 A A10VSO 71 DFR /31R-PPA12K07 |
| R902428830 A A10VSO 71 DFR /31R-PPA12K52 |
| R910942635 A A10VSO 71 DFR /31R-PPA12N00 |
| R902439238 A A10VSO 71 DFR /31R-PSA12K07 -S1627 |
| R910960746 A A10VSO 71 DFR1/31L-PPA12N00 |
| R910947985 A A10VSO 71 DFR1/31R-PPA12K01 |
| R910947872 A A10VSO 71 DFR1/31R-PPA12K02 |
| R910966909 A A10VSO 71 DFR1/31R-PPA12K04 |
| R910963378 A A10VSO 71 DFR1/31R-PPA12K07 |
| R910991723 A A10VSO 71 DFR1/31R-PPA12KB3 |
| R910978724 A A10VSO 71 DFR1/31R-PPA12KB4 |
| R910968700 A A10VSO 71 DFR1/31R-PPA12KB5 |
| R910944440 A A10VSO 71 DFR1/31R-PPA12N00 |
| R910947992 A A10VSO 71 DFR1/31R-PPA12N00 -SO 20 |
| R910968701 A A10VSO 71 DFR1/31R-PSA12N00 |
| R910986932 A A10VSO 71 DFR1/31R-VPA12K01 |
| R910992519 A A10VSO 71 DFR1/31R-VPA12N00 |
| R902473183 A A10VSO 71 DFR1/31R-VPA42K27 |
| R902488176 A A10VSO 71 DFR1/31R-VPA42KB5 -SO 52 |
| R902501568 A A10VSO 71 DFR1/31R-VSA12N00 |
| R910960333 A A10VSO 71 DR /31L-VPA12N00 |
| R910998793 A A10VSO 71 DR /31R-PPA12N00 -SO108 |
| R910947219 A A10VSO 71 DR /31R-VPA12N00 |
| R902473969 A A10VSO 71 DR /31R-VPA42KB5 |
| R902482660 A A10VSO 71 DR /31R-VPA42N00 |
| R910947898 A A10VSO 71 DRG /31R-PPA12N00 |
| R910992951 A A10VSO 71 DRG /31R-PSA12N00 |
| R902411494 A A10VSO 71 DRG /31R-VPA12K02 |
| R910947258 A A10VSO 71 DRG /31R-VPA12N00 |
| R902452789 A A10VSO 71 DRS /32R-VPB22U99 |
| R902486410 A A10VSO 71 DRS /32R-VRB32U01 -SO 52 |
| R902486409 A A10VSO 71 DRS /32R-VRB32U68 -SO 52 |
| R910961157 A A10VSO 71 FHD /31R-PPA12N00 |
| R902460926 A A10VSO100 DFLR/31R-VPA12N00 |
| R910907813 A A10VSO100 DFR /31L-PPA12N00 |
| R910917313 A A10VSO100 DFR /31R-PPA12K01 |
| R910998331 A A10VSO100 DFR /31R-PPA12K07 |
| R910942637 A A10VSO100 DFR /31R-PPA12K27 |
| R902417327 A A10VSO100 DFR /31R-PPA12KB4 |
| R902416469 A A10VSO100 DFR /31R-PPA12KB5 |
| R910939643 A A10VSO100 DFR /31R-PPA12N00 |
| R910991002 A A10VSO100 DFR /31R-PSA12N00 |
| R910920969 A A10VSO100 DFR /31R-VPA12N00 |
| R910986270 A A10VSO100 DFR1/31L-PPA12KB4 -SO 32 |
| R910911394 A A10VSO100 DFR1/31R-PPA12K01 |
| R910927083 A A10VSO100 DFR1/31R-PPA12K02 |
| R910983124 A A10VSO100 DFR1/31R-PPA12KB3 |
| R910984741 A A10VSO100 DFR1/31R-PPA12KB4 |
| R910985609 A A10VSO100 DFR1/31R-PPA12KB5 |
| R902403231 A A10VSO100 DFR1/31R-PPA12KB6 |
| R910922744 A A10VSO100 DFR1/31R-PPA12N00 |
| R902418759 A A10VSO100 DFR1/31R-PSA12KB4 |
| R910971805 A A10VSO100 DFR1/31R-PSA12KB6 |
| R910949826 A A10VSO100 DFR1/31R-PSA12N00 |
| R910922681 A A10VSO100 DR /31L-VPA12N00 |
| R910968839 A A10VSO100 DR /31R-PPA12K04 |
| R910916809 A A10VSO100 DR /31R-VPA12N00 |
| R910943447 A A10VSO100 DRG /31R-PPA12N00 |
| R902420121 A A10VSO100 DRG /31R-VPA12K25 |
| R910930899 A A10VSO100 DRG /31R-VPA12N00 |
| R902448357 A A10VSO100 DRG /32R-VPB12N00 |
| R902454561 A A10VSO100 DRS/32R-VPB22U99 |
| R910968510 A A10VSO140 DFLR/31L-PPB12N00 |
| R910972152 A A10VSO140 DFLR/31R-PPB12K02 |
| R910935974 A A10VSO140 DFLR/31R-PPB12N00 |
| R902429793 A A10VSO140 DFLR/31R-VPB12N00 |
| R910921188 A A10VSO140 DFR /31L-PPB12N00 |
| R910933808 A A10VSO140 DFR /31R-PPB12K02 |
| R910939165 A A10VSO140 DFR /31R-PPB12K26 |
| R902410448 A A10VSO140 DFR /31R-PPB12KB4 |
| R910997710 A A10VSO140 DFR /31R-PPB12KB5 |
| R902416467 A A10VSO140 DFR /31R-PPB12KB6 |
| R902416466 A A10VSO140 DFR /31R-PPB12KB7 |
| R910939192 A A10VSO140 DFR /31R-PPB12N00 |
| R910993952 A A10VSO140 DFR /31R-PSB12N00 |
| R910931693 A A10VSO140 DFR /31R-VPB12N00 |
| R910947401 A A10VSO140 DFR1/31R-PPB12K01 |
| R910927126 A A10VSO140 DFR1/31R-PPB12K02 |
| R902433789 A A10VSO140 DFR1/31R-PPB12K07 |
| R910983963 A A10VSO140 DFR1/31R-PPB12KB3 |
| R910983738 A A10VSO140 DFR1/31R-PPB12KB4 |
| R910990335 A A10VSO140 DFR1/31R-PPB12KB5 |
| R910988742 A A10VSO140 DFR1/31R-PPB12KB6 |
FAQ:
4. What is the displacement volume?
The nominal displacement is 28 cm³/rev (1.71 in³/rev).
5. What type of hydraulic oil should be used?
Recommended fluids:
• Mineral-based hydraulic oils (ISO VG 15–68)
• Synthetic or biodegradable fluids (check compatibility)
• Maintain cleanliness (ISO 4406 18/16/13 or better)
6. What are common applications for the A10VSO28?
• Construction machinery (excavators, loaders)
• Industrial presses & injection molding
• Material handling equipment
• Agricultural machinery
7. How do I adjust the pressure setting?
The pressure compensator can be adjusted via the control screw (refer to the manual for calibration). Always adjust under controlled conditions.
8. What maintenance is required?
• Regularly check oil cleanliness and levels.
• Inspect seals and replace if leaking.
• Monitor for unusual noise or vibration.
• Follow Bosch Rexroth’s service intervals.
9. What are common troubleshooting issues?
Issue Possible Cause Solution
Low flow Worn pistons/valve plate Inspect & replace parts
Overheating High viscosity oil, clogged cooler Check oil grade,
clean cooler
Noise Cavitation, air ingress Check suction line, bleed air
|
|
