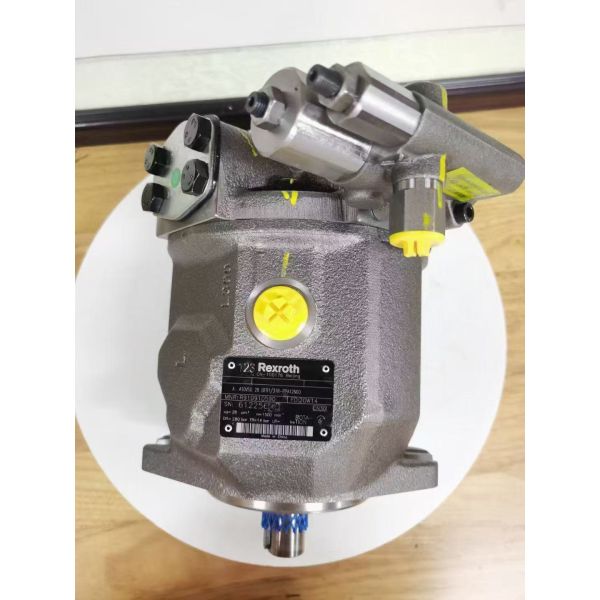

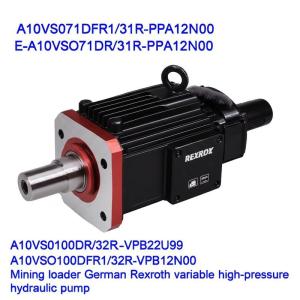

A10VS071DFR1/31R-PPA12N00 E-A10VSO71DR/31R-PPA12N00 A10VS0100DR/31R-PPA12N00
A10VS0100DR/32R-VPB22U99 A10VSO100DFR1/32R-VPB12N00 Mining loader German Rexroth variable high-pressure hydraulic pump

FAQ:

Here's an FAQ about the A10VSO28 hydraulic pump:

Q1: What is the A10VSO28 and what are its key features?

The A10VSO28 is an axial piston variable pump designed for open circuit hydraulic systems. It features a swashplate design that allows for stepless flow variation by adjusting the swashplate angle. Key characteristics include excellent suction performance, low noise operation, long service life, high power-to-weight ratio, and the ability to handle continuous operating pressures up to 280 bar (with peak pressures up to 350 bar). It also has two housing drain ports for improved reliability.

Q2: What are the typical technical specifications of the A10VSO28 pump?

The pump has a nominal displacement of 28 ml/rev. It typically operates at a rated speed of 1500 rpm and can handle a maximum continuous pressure of 28 MPa (280 bar), with peak pressures up to 35 MPa (350 bar) momentarily. It offers a volumetric efficiency ≥94% and a total efficiency ≥85%. The pump's weight is approximately 23.5 kg, and it requires a fluid inlet pressure (suction pressure) of around 14 bar.

Q3: What different control options are available for the A10VSO28 series?

The A10VSO28 series offers various control options to suit different application needs. These include pressure control (DR), remote pressure control (DRG), and pressure-flow control (DFR1). For example, common model variants include A10VSO28DR/31R-PPA12N00 (pressure control) and A10VSO28DFR1/31R-VPA12N00 (pressure-flow control).

Quanzhou Yisenneng Hydraulic Electromechanical Equipment Co., Ltd. has been established for many years and has now developed into an international trading company supplying various hydraulic machinery parts, oil pumps and valves. We are one of the few Chinese companies with multiple products and channels. Main focus: quality assurance! The price is the lowest in the industry! Quality management procedures are implemented in accordance with international standards and are implemented throughout the production process. In terms of channels, we have gathered the most complete variety of products in the world; in terms of quality, all products meet international standards; the lowest price in the industry is the highest; the fastest delivery on credit, and a complete after-sales system; remember Good service is the key to cooperation with customers. We strive to achieve high quality standards, provide competitive prices, and ensure timely delivery. In this way, our products have been recognized by the market and satisfied by customers in the past years. Our goal is to meet the needs of our global customers. Here you can enjoy a one-stop shopping experience, the customer is God, you want all of us, I wish you a happy shopping trip.
