D664-Z4306K/P05JXNF6VSX2-A
D662Z4341K/P02JXMF6VSX2-A
D662-4014/D01JABF6VSX2-A
D661-4651/1156-421 G35JOAA6VSX2HA

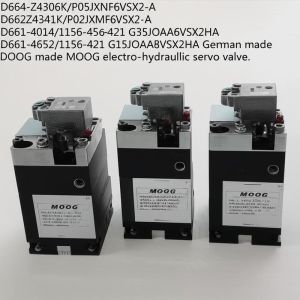

D661-4652/1156-421 G15JOAA6VSX2HA German made MOOG electro-hydraulic servo valve

FAQ:

Frequently Asked Questions (FAQ): Moog Electrohydraulic Servo Valves

1. What is an Electrohydraulic Servo Valve?

An electrohydraulic servo valve is a precision component that acts as an interface between the electrical control system and the hydraulic power system. It receives a low-power electrical analog signal and converts it into a proportional, high-power hydraulic output (flow and pressure). This makes it a crucial control core in electrohydraulic servo systems, responsible for both electrical-to-hydraulic signal conversion and power amplification .

2. How does a Moog Servo Valve work?

A Moog servo valve typically consists of a polarized electrical torque motor and a two-stage hydraulic amplifier .

• First Stage: The torque motor deflects an armature and a flapper attached to it. This flapper moves between two nozzles, creating variable orifices that control the pressure on either end of the second-stage spool .

• Second Stage: The differential pressure moves the spool, which then controls the flow of hydraulic fluid to the actuator. A feedback spring, connected to the flapper and engaging the spool, creates a force that balances the input signal torque, ensuring precise spool positioning proportional to the electrical command .

Quanzhou Yisenneng Hydraulic Electromechanical Equipment Co., Ltd. has been established for many years and has now developed into an international trading company supplying various hydraulic machinery parts, oil pumps and valves. We are one of the few Chinese companies with multiple products and channels. Main focus: quality assurance! The price is the lowest in the industry! Quality management procedures are implemented in accordance with international standards and are implemented throughout the production process. In terms of channels, we have gathered the most complete variety of products in the world; in terms of quality, all products meet international standards; the lowest price in the industry is the highest; the fastest delivery on credit, and a complete after-sales system; remember Good service is the key to cooperation with customers. We strive to achieve high quality standards, provide competitive prices, and ensure timely delivery. In this way, our products have been recognized by the market and satisfied by customers in the past years. Our goal is to meet the needs of our global customers. Here you can enjoy a one-stop shopping experience, the customer is God, you want all of us, I wish you a happy shopping trip.
